LED-CTL-001 is a moving object sensor that can detect range of 360° and its working frequency is 5.8G. The advantage of this product is stable working state and adopts a microwave sensor (<0.2mW), so that it is safer and performs better than infrared sensor.

Specifications:

• Power supply: 220-240V/AC, 100-130V/AC


• Power frequency: 50/60Hz

• HF system: 5.8GHz CW radar, ISM band

• Transmission power: <0.2mW

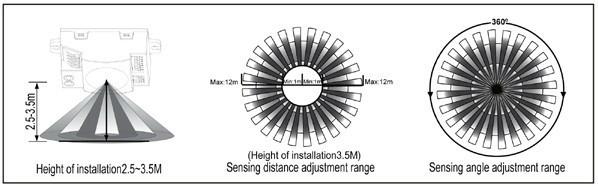

• Detection angle: 360°

• Detection distance: 2-10m(adjustable)

• Time setting: 12sec to 30min(adjustable)

• Light control: 10~2000LUX(adjustable)

• Rated load: 1200W (Max. resistive load) ;300W(Max. inductive Load)

• Working temperature: -10°C-60°C

• Power consumption: Approx. 0.9W

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 61.00

Std. Packing Qty. (pcs): 1
