Features:

- Reversible bolt for up and down

- Superior heavy duty metal construction

- Surface-mounted compact electric lock

- Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,

- Can be fitted to locker, mail box and drawers etc

Specification:

Operation Voltage:  12VDC ±10% intermittent

Power Consumption:  0.43A (at DC12V 20°C)

Wattage: 5W

DC Resistance  28Ω±10% (at 20°C)

Duty Cycle  cycle 25%

Max Power On  25 Seconds

Operation Mode:  Fail Locked

Insulation Class  B Class

Length of tongue:  6.7mm

Stroke: 4mm

Cycle Rating: 300,000 times

Force: ≥300gf@Stroke 0mm

           ≥80gf@Stroke 5mm

Working Temperature:  -5ºC ~ +55ºC

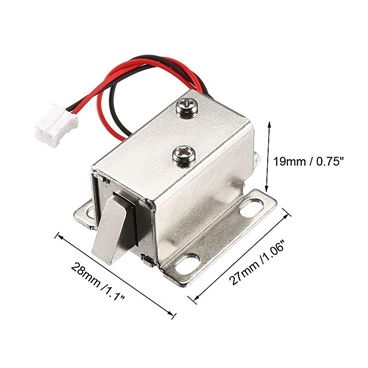

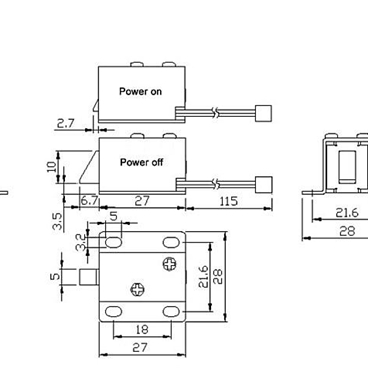

Dimensions LxWxH:  28 x 27 x 29mm

Protection Class:  IP20

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 36.00

Std. Packing Qty. (pcs): 1
