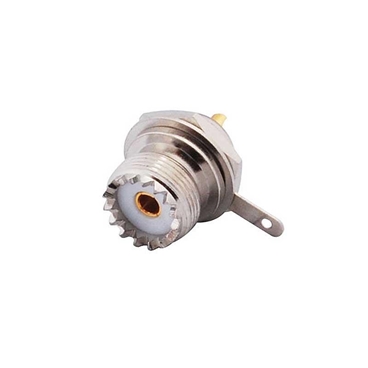

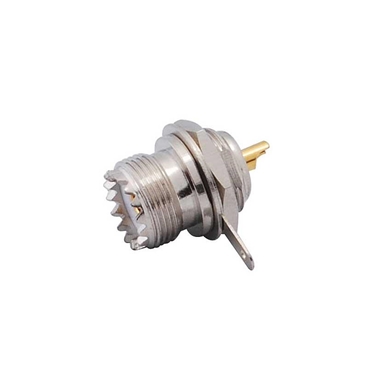

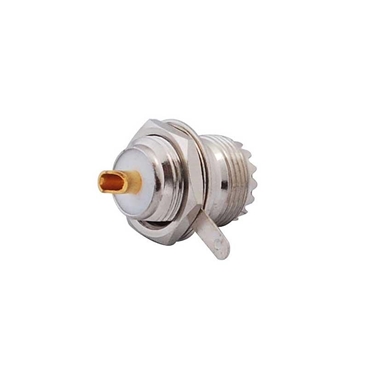

SO239 Chassis Socket UHF Female For PL259 Connector With Nut
UHF coaxial RF connectors were one of the first RF connector series to be developed. UHF type connectors are general purpose, non-constant impedance connectors which operate from DC to 300 MHz. The 5/8"-24 thread coupling and clamp,crimp,twist-on, and solder terminations give the UHF the flexibility that has kept it one of the most popular coaxial connectors over the years.
Among the many applications of this low cost, low frequency device are antenna connections for CB radios, public address systems, audio, video, mobile radio, and test equipment.
Product Series: UHF
Product Type: 2 Hole Front Mount
Body Plating: Nickelplated
Connector Body Style: Straight bulkhead
Connector Material: Brass
Contact Plating: Nickelplated
Gender: Jack
Impedance: 50 Ohm
CON-CO-042
50
18.50
50pcs/lot
