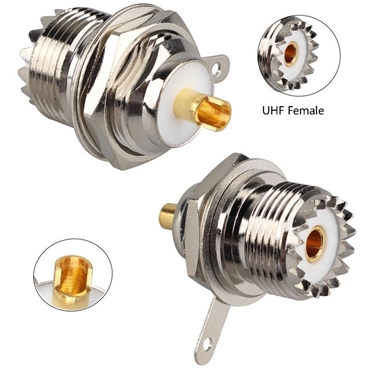

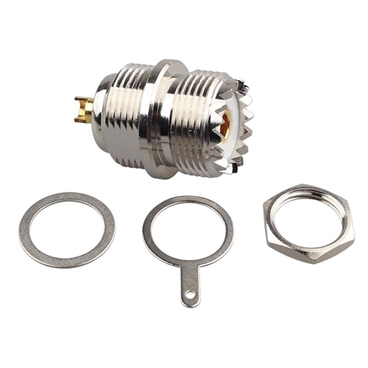

SO239 Bulkhead Connector UHF Female Nut Bulkhead Handle Deck Clip Solder Cup Panel Mount Straight Connector for CB Radios, Test Equipment
Features:
The UHF Female connector is used to connect UHF Male device.
Compatible with antenna switch, OR.
Widely used for CB radios, public address systems, audio, video, mobile
radio, and test equipment, antennas, broadcast, Wi-Fi, telecom, coaxial
cable.
Specifications:
Materials: brass & nickel plated
Impedance: 50 ohm, Low-loss
Frequency Range: 0-300MHz
Working Voltage: 1000V r.m.s at sea level
Withstanding Voltage: 2500V r.m.s at sea level
Insulation resistance: ≥5000MΩ
Center Conductor retention force: ≥0.56N
Durability: ≥500times(cycles)
Insulators: PTFE
VSWR: ≤1.15
Temperature Range: -55~+155℃
CON-CO-082
50
17.20
50pcs/lot
